Specifications

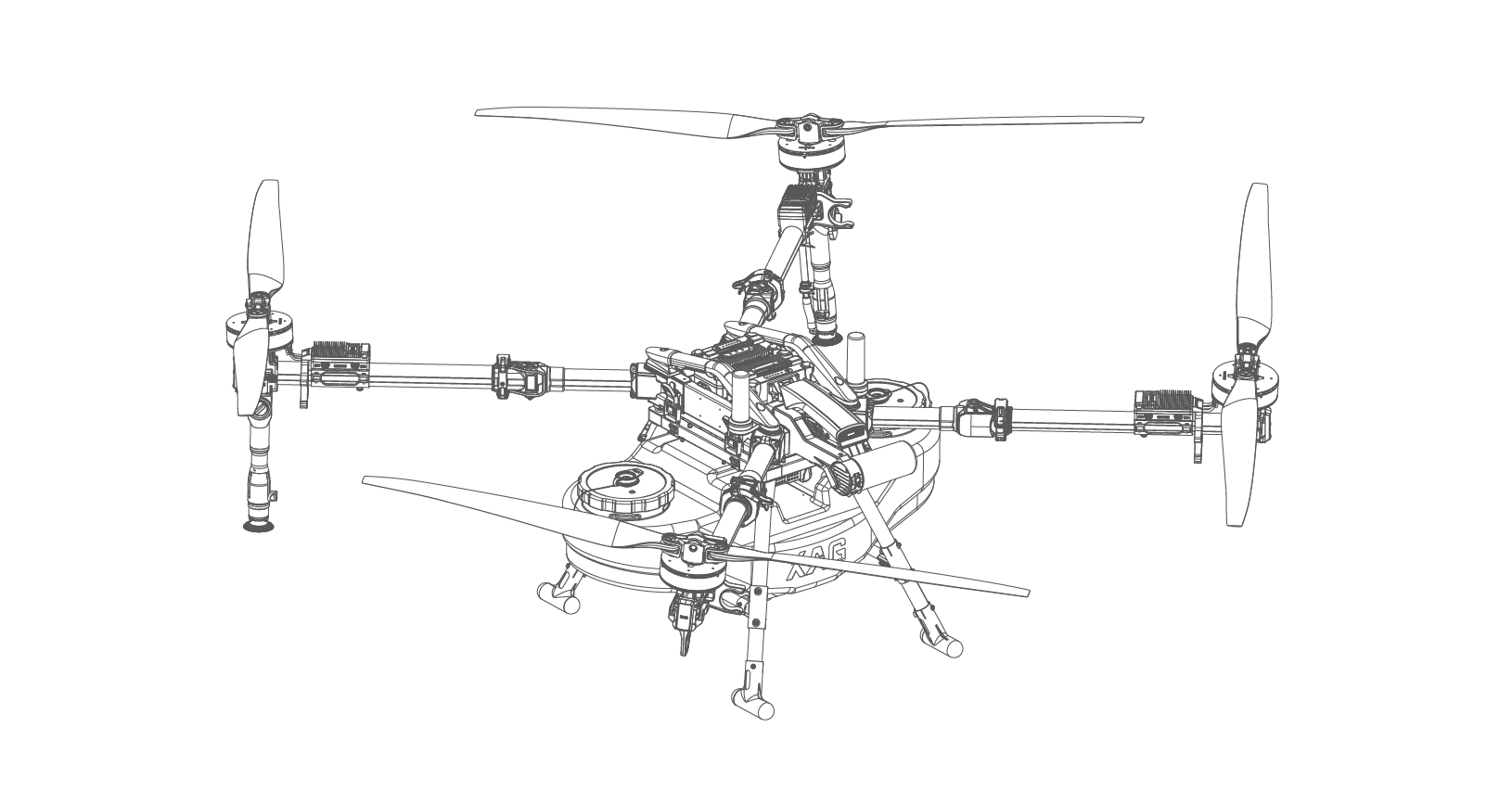

XAG P150 Max (AU Model)
Model
3WWDZ-U80AH
Flight Control System [1]
SuperX5 Ultra (Cloud RTK)
IP Rating
IPX6K
Arm Material
Aluminium alloy
Diagonal Wheelbase
2335mm
Propulsion System
Motors
Stator Dimensions
145mm x 26mm
Max Tension
56KG / Motor
KV
68RPM / V
Power
4850W / Motor
ESCs
Model
XESC-F360
Max. Continuous Working Current
140A
Max. Output Current (30s)
380A
Foldable Propellers
Quantity
4
Propeller Material
Carbon fibre composite
Dimension
63 inches
Diameter
1600mm
Flight Parameters
Empty Weight [2]
(No Container or Battery)
32.00 Kg
Empty Weight [2]
(Empty Container + Battery)
56.00 Kg (With RevoSpray P5)
60.00 Kg (With RevoCast P5 & No Spray Rods)
Max Take-off Weight
(Full Container + Battery)
136.00 Kg (With RevoSpray P5)
140.00 Kg (With RevoCast P5 & No Spray Rods)
Max Take-off Weight
149.00 Kg
Hovering Time [2]
20.0min (Take-0ff weight of 56kg @20000mAh x 2)
5.1min (Take-0ff weight of 136kg @20000mAh x 2)
Max. Operating Speed [3]
20.0m/s (With Good GNSS Signal)
Max. Operating Height
120m
Max. Flight Distance
2 km
Max. Wind Resistance
<6m/s
Operating Ambient Temperature
0°C to 40°C
Hovering Accuracy Range
(With Strong GNSS Signal)
RTK Enabled:
±10cm (Horizontal) ±10cm (Vertical)
RTK Disabled:
±0.6m (Horizontal) ±0.3m (Vertical) (Radar Enabled ±0.1m)
Operating Frequency
2.400 GHz ~ 2.4835 GHz; 5.725GHz ~ 5.850GHz
Transmission Power (EIRP)
2.400 GHz ~ 2.4835 GHz
≤33 dBm (FCC)
≤20 dBm (CE/SRRC/MIC)
5.725 GHz ~ 5.850 GHz
≤33 dBm (FCC)
≤30 dBm (SRRC)
≤14 dBm (CE)
High Precision Navigation
≤600s (With RTK Delay)
2G Operating Frequency
CE: DCS 1800: 1710.2 ~ 1784.8MHz
GSM900: 880.2 ~ 914.8MHz
2G Max. Transmit Power
Class 1 (30dBm) for DCS1800
Class 4 (33dBm) for EGSM900
3G Operating Frequency
CE: WCDMA Band 1 1922.4 ~ 1977.6MHz
WCDMA Band 8 882.4 ~ 912.6MHz
WCDMA Band 5 824.2 ~ 848.8MHz
3G Max. Transmit Power
Class 3 (24dBm) for WCDMA bands
4G Operating Frequency
Band 1: 1922.5 MHz ~ 1977.5 MHz;
Band 3: 1710.7 MHz ~ 1784.3 MHz;
Band 5: 869.7 MHz ~ 893.3 MHz;
Band 7: 2502.5 MHz ~ 2567.5 MHz;
Band 8: 880.7 MHz ~ 914.3 MHz;
Band 20: 834.5 MHz ~ 859.5 MHz;
Band 28: 704.5 MHz ~ 746.5 MHz;
Band 38: 2572.5 MHz ~ 2617.5 MHz;
Band 40: 2302.5 MHz ~ 2397.5 MHz;
Band 41: 2498.5 MHz ~ 2687.5 MHz;
4G Max. Transmit Power
Class 3 (25dBm) for LTE bands
GNSS Frequency
Primary Antenna:
BDS: B1L, B3L, B1C, B2b-PPP
GPS: L1C/A, L2P(Y), L2C, L5
GLONASS: G1, G2
Galileo: E1, E5a, E5b, E6
QZSS: L1C/A, L2C, L5, L6d, L6E, L-Band
Secondary Antenna:
BDS: B1L, B3L
GPS: L1C/A, L2P(Y), L2C
Galileo: E1, E5b
QZSS: L1C/A, L2C
Obstacle Sensor & Avoidance System [4]
4D Imaging Radar
Model
RD2488_25
Operating Frequency
24GHz
Operating Voltage
24V
Power
< 15W
Sensing Range
1.5m ~ 100m
Sensing Mode
Beamforming, 4D Imaging
Sensing Parameters
Azimuth, Pitch, Distance, Speed
Field of View (FOV)
Horizontal: ±40°
Vertical: ±115°
Safety Limit Distance
2.5m
Working Conditions [4]
Min. Relative Height: ≥ 1.5m
Max. Relative Speed: ≤ 13.8m/s
Obstacle Avoidance Mode
Horizontal obstacle bypass
Vertical obstacle bypass
Terrain Following Altitude Hold Range
1.0m - 30m (Relative Height from Vegetation)
Terrain Following Max. Gradient
45° (@Flight Speed ≤ 2m/s)
FPV Cameras
Operating Voltage
24V
Frame Rate
30fps
Video Coding Format
H.265
Video Resolutions
1920 x 1080
Focal Length
1.83 mm
Image Sensor
1/2.7-inch CMOS-RGB Image sensor,
Effective Pixels: 5MP

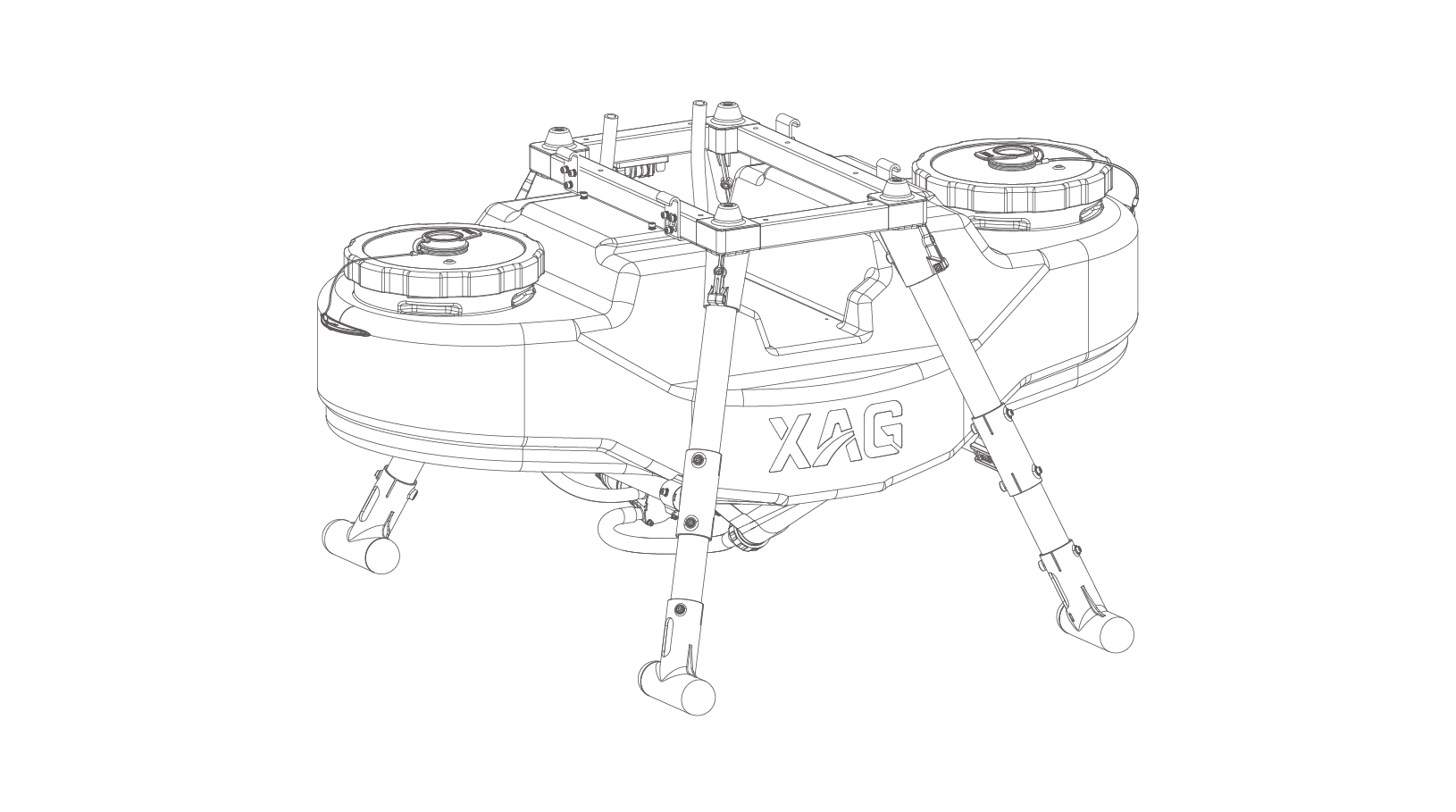

RevoSpray P5 System
Liquid Tank
Material
Plastic (PE)
Volume
80L
Sensor
Liquid Level Sensor
Centrifugal Atomizing Nozzles
Nozzle Type
Centrifugal
Quantity
2
Spray Bar Length
1789mm
Rotational speed of Spray disc
1500RPM - 16000RPM
Spray Swath [5]
5m - 10m
(Subject to Flight Speed, Height, Dosage,
Environment and etc.)
Droplet Size
60µm – 500µm
Flexible Impeller Pump
Quantity
2
Voltage
50V
Pump Type
Flexible Impeller Pump [6]
Flow Rate [7]
0.5L - 16.0L/min (Single Pump)
1.0L – 32.0L/min (Both Pump)

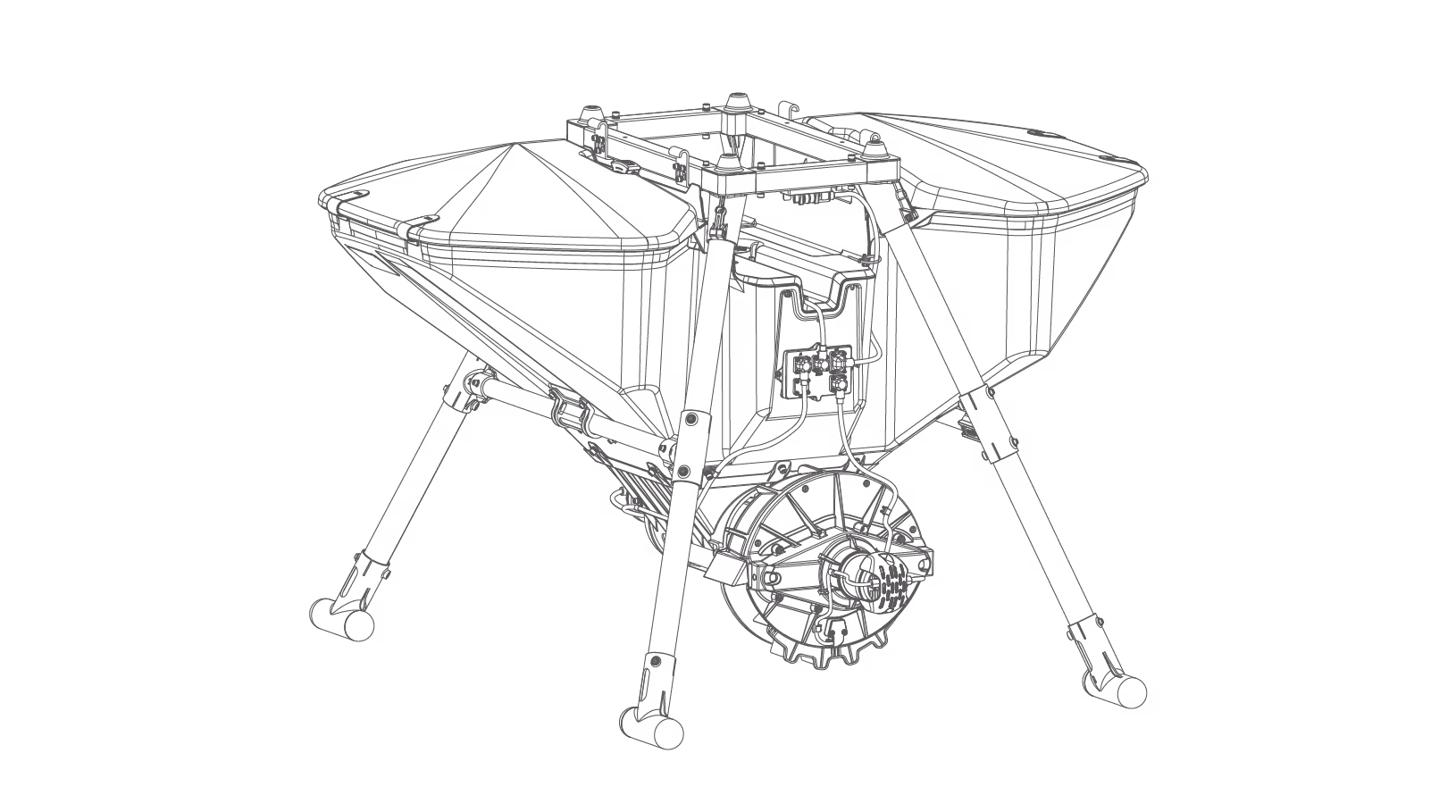

RevoCast P5 System
Model
M4RCP115BH
Dimension
1119mm x 1012mm x 743mm
Net Weight
14.00 Kg
IP Rating
IP65
Rated Capacity
115L
Rated Load
80Kg
Quantity of Screw Feeder
1
Max. Rotational Speed
17000 rpm
Operating Ambient Temperature
0°C – 40°C
Storage Ambient Temperature
0°C – 40°C
Spread Swath
5m – 9m
(Subject to Flight Height, Seed’s Weight & Shape,
Dosage, Environment and etc.)
Applicable granule Size
1-10mm (Dry Solid Granules)
Spread Amount Accuracy
±10% (subject to granule type and moisture)
Compatible Aircraft
XAG® P150 Max Agricultural Drone

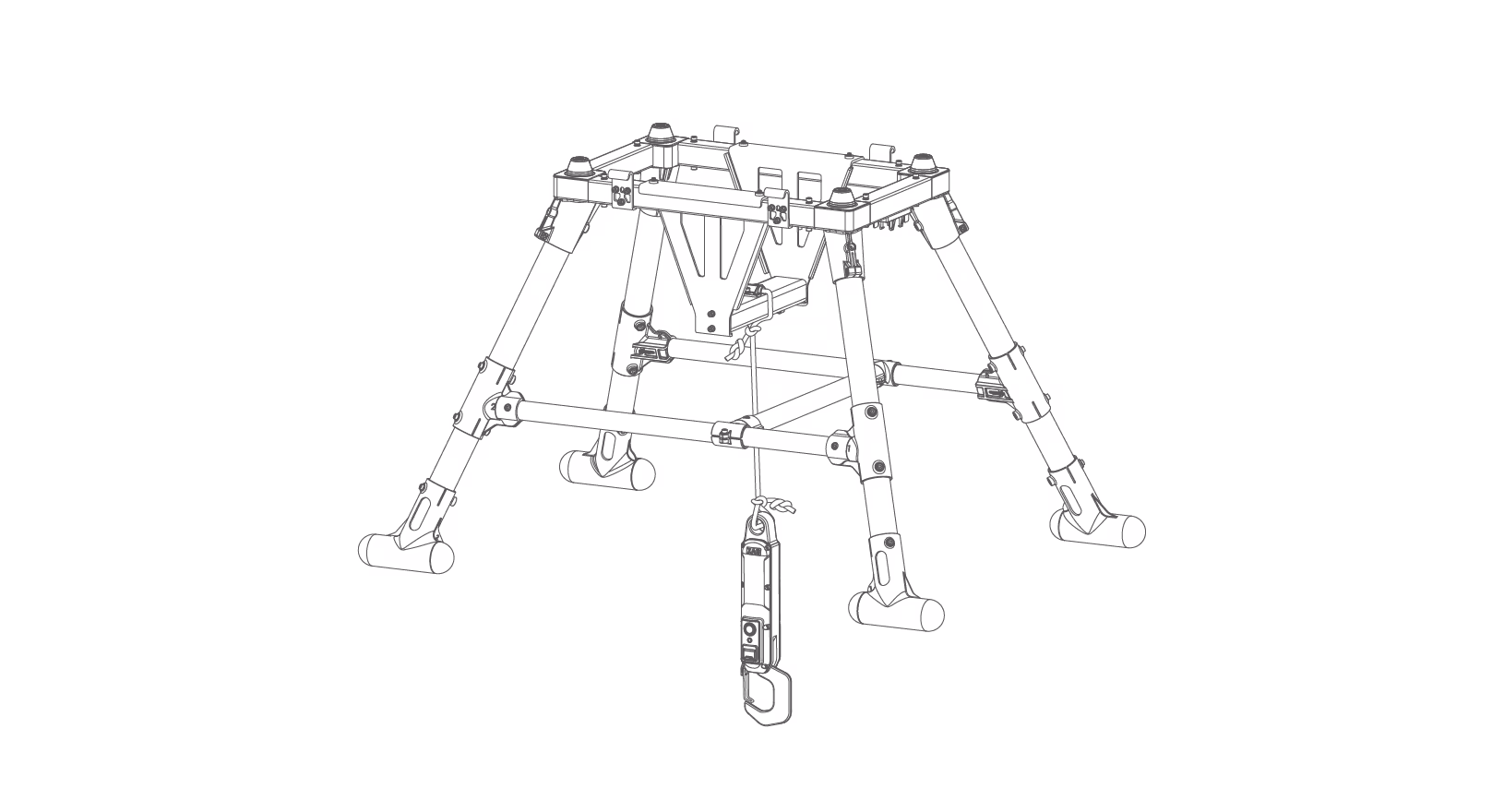

RevoSling System
Model
M4XRSP80A
Dimension
859mm x 595mm x 532mm (Landing Gear)
300mm x 76mm x 59mm (Smart Hook)
Net Weight
5.60 Kg
IP Rating
IP65
Rated Load
80Kg
Required Rope Length
5 ~ 15m
Charging Voltage / Current
5V/2A
Operating Ambient Temperature
10°C to 45°C
Storage Ambient Temperature
-20°C to 60°C
Compatible Aircraft
XAG® P150 Max Agricultural Drone
Compatible Remote Controller
XAG® SRC5 Remote Controller

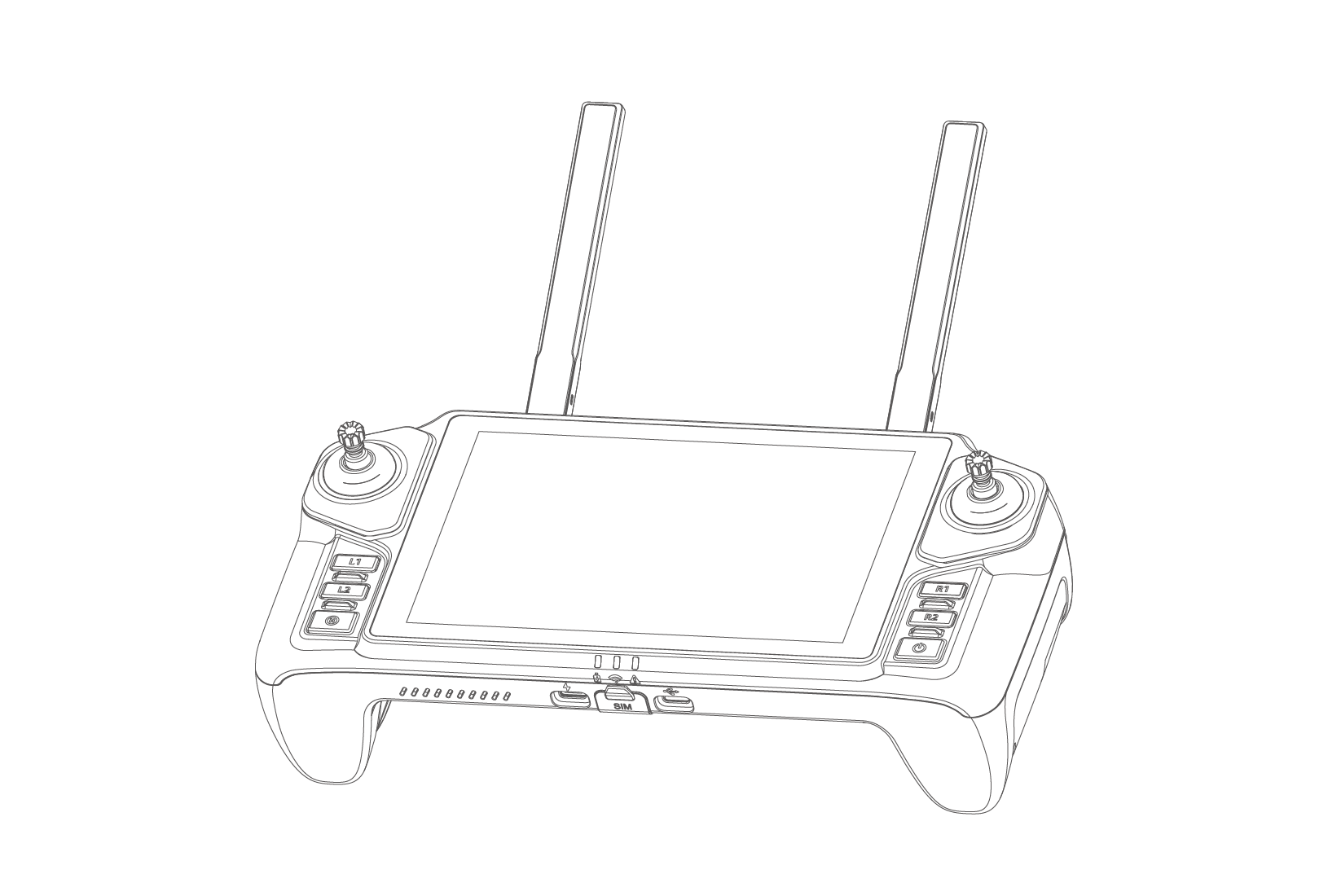

SRC5 Remote Controller
Model
M3SRC5AH
Dimensions
260mm x 140mm x 89mm
Weight
1.2 Kg
Operating System
Android
Battery Capacity
20000mAh (3.65V)
Charging Protocol
Supports QC Charging protocol
Charging Ambient Temperature
5°C to 40°C
Operating Ambient Temperature [8]
-10°C to 40°C
Storage Ambient Temperature
-20°C to 55oC Less than a Month
-20°C to 45°C One to three months
-20°C to 25°C Three months to one year
Charging Voltage / Current
5V⎓3A, 12V⎓2.5A, 15V⎓3.0A
Max Transmission Distance [9]
(Unobstructed, free of interference)
SRRC: 2000 Meters
FCC: 2000 Meters
CE/MIC: 1000 Meters
Voice Prompt
Yes
Screen Brightness
1200 cd/m2
Screen Resolution
1920 x 1200
Screen Size
7.02 inches
Screen Frame Rate
60 fps
Compatible Aircraft
XAG® P150 Max Agricultural Drone
Operating Frequency (Wi-Fi)
2.400 - 2.4835 GHz; 5.725 - 5.850GHz
Effective Isotropic Radiated Power
(Wi-Fi)
2.400 GHz ~ 2.4835 GHz
≤33 dBm (FCC)
≤20 dBm (CE/SRRC/MIC)
5.725 GHz ~ 5.850 GHz
≤33 dBm (FCC)
≤30 dBm (SRRC)
≤13.98 dBm (CE)
Operating Frequency (Bluetooth)
2402 MHz ~ 2480 MHz
Effective Isotropic Radiated Power (Bluetooth)
≤10 dBm
2G Operating Frequency
CE: GSM900: 800 – 915 MHz
925 – 960 MHz
DCS1800: 1710 – 1785 MHz
1805 – 1880 MHz
FCC: GSM850; PCS1900
ANATEL: GSM850, GSM900, GSM1800, GSM1900
2G Max. Transmit Power
Class 1 (30 dBm ±2 dB) for DCS1800
Class 4 (33 dBm ±2 dB) for GSM900
3G Operating Frequency
CE: WCDMA Band 1 1920 – 1980 MHz
2210 – 2170 MHz
WCDMA Band 8 880 – 915 MHz
925 – 960 MHz
FCC: WCDMA B2, WCDMA B4
KCC: WCDMA B1
ANATEL: WCDMA B1, WCDMA B2,
WCDMA B5, WCDMA B8
MIC: WCDMA B1, WCDMA B5,
WCDMA B6, WCDMA B8,
WCDMA B19
3G Max. Transmit Power
Class 3 (24dBm + 1/-3 dB) for WCDMA bands
4G Operating Frequency (LTE)
CE: LTE B1, LTE B3, LTE B7, LTE B8,
LTE B20, LTE B28, LTE B38, LTE B40
FCC: LTE B2, LTE B4, LTE B5, LTE B7,
LTE B25, LTE B26, LTE B38, LTE B41
KCC: LTE B1, LTE B3, LTE B5, LTE B7, LTE B8
ANATEL: LTE B1, LTE B3, LTE B5, LTE B8, LTE B25
LTE B26, LTE B28, LTE B39, LTE B40, LTE B41
MIC: LTE B1, LTE B3, LTE B5, LTE B8, LTE B18
LTE B19, LTE B26, LTE B41
4G Max. Transmit Power
Class 3 (23 dBm ±2 dB) for LTE bands
GNSS Frequency Band
BDS: B1
GPS: L1C
GLONASS: L1
Galileo: E1

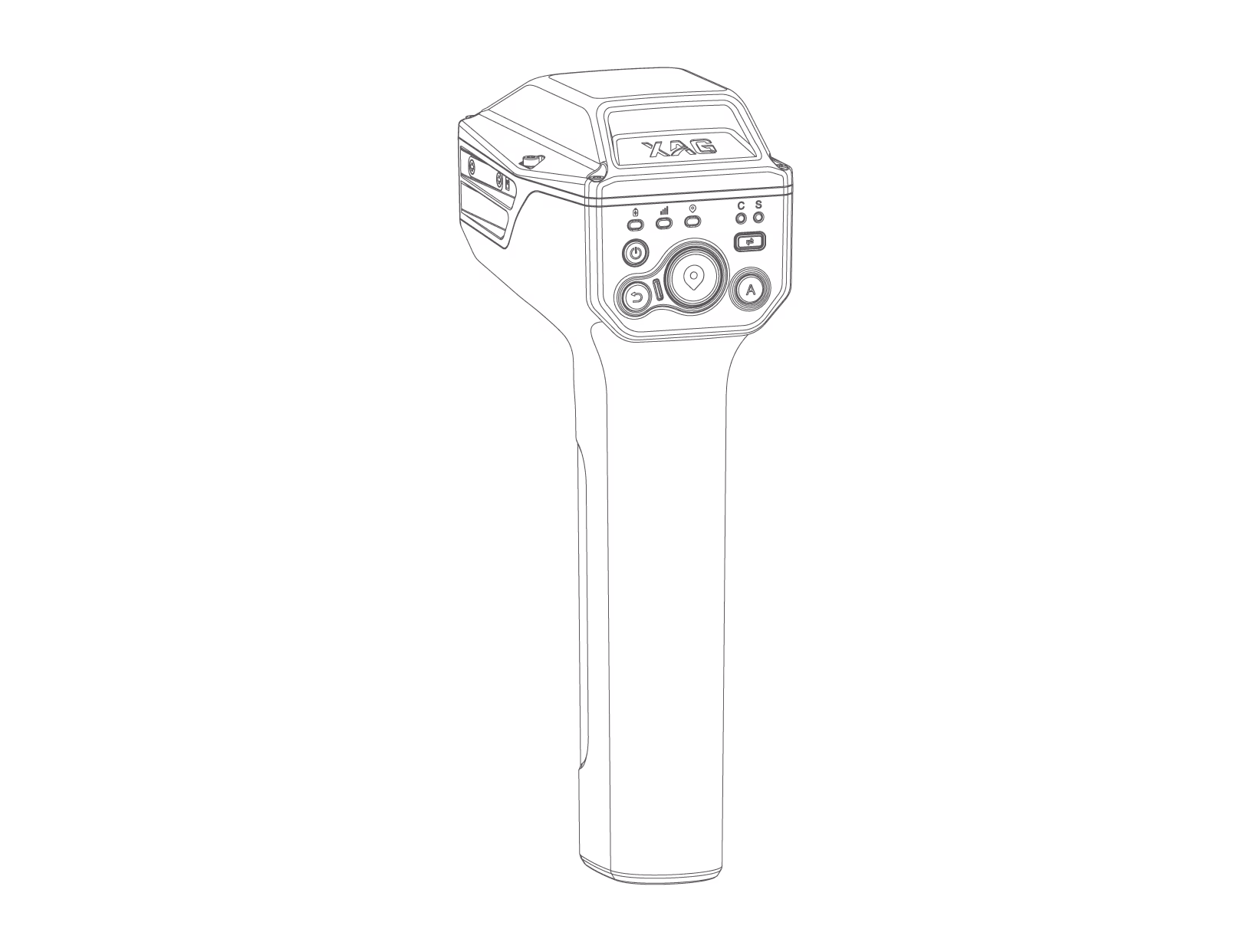

XRTK7
Model
M3RTK7AH
Dimensions
222mm x 112mm x 75mm
Weight
0.55 kg
Battery Capacity
10000mAh / 3.65V
IP Rating
IP65
Vibration
Yes
Voice Prompt
Yes
Charging Protocol
Supports PD/QC Protocol
Charging Voltage / Current
5V⎓3A, 12V⎓1.5A
Charging Ambient Temperature
5°C to 40°C
Operating Ambient Temperature [8]
-10°C to 45°C
Storage Ambient Temperature
-20°C to 55°C Less than a Month
-20°C to 45°C One to three months
-20°C to 25°C Three months to one year
Max Transmission Distance [9]
(Unobstructed, free of interference)
2000 Meters
Operating Frequency (Wi-Fi)
2.4 GHz: 2412 MHz ~ 2462 MHz (FCC)
2412 MHz ~ 2472 MHz (CE)
5.8 GHz: 5745 MHz ~ 5825 MHz
2G Operating Frequency
CE: DCS 1800: 1710.2 ~ 1784.8MHz
GSM900: 880.2 ~ 914.8MHz
2G Max. Transmit Power
Class 1 (28dBm) for DCS1800
Class 4 (35dBm) for EGSM900
3G Operating Frequency
CE: WCDMA Band 1 1922.4 ~ 1977.6 MHz
WCDMA Band 8 882.4 ~ 912.6 MHz
WCDMA Band 5 824.2 ~ 848.8 MHz
3G Max. Transmit Power
Class 3 (24dBm) for WCDMA bands
4G Operating Frequency
Band 1: 1922.5 MHz ~ 1977.5 MHz;
Band 3: 1710.7 MHz ~ 1784.3 MHz;
Band 5: 869.7 MHz ~ 893.3 MHz;
Band 7: 2502.5 MHz ~ 2567.5 MHz;
Band 8: 880.7 MHz ~ 914.3 MHz;
Band 20: 834.5 MHz ~ 859.5 MHz;
Band 28: 704.5 MHz ~ 746.5 MHz;
Band 38: 2572.5 MHz ~ 2617.5 MHz;
Band 40: 2302.5 MHz ~ 2397.5 MHz;
Band 41: 2498.5 MHz ~ 2687.5 MHz;
4G Max. Transmit Power
Class 3 (25dBm) for LTE bands
Effective Isotropic Radiated Power (EIRP)
2412 MHz to 2472 MHz: <20 dBm (CE)
5745 MHz to 5825 MHz: <14 dBm (CE)
2402 MHz to 2480 MHz: <7 dBm (CE)
Bluetooth Protocol
Bluetooth LE V5.2
Operating Frequency (Bluetooth 5.2)
2402 MHz ~ 2480 MHz
GNSS Frequency
BDS: B1L, B1C
GPS: L1C/A, L1C, L2C, L5
GLONASS: G1, G2
Galileo: E1, E5a, E5b
Positioning Accuracy
(Good RTK Signal)
Horizontal: <5.0cm + 1ppm (RMS)
Vertical: <7.5cm + 1ppm (RMS)
Smart Battery
General Information
Model
M1PPA141050AH
Dimensions
192mm x 139mm x 315mm
Weight [10]
Approx. 7.1 kg
Battery Type
Lithium Polymer (LiPo) Battery
Performance Specifications
Rated Capacity
20,000 mAh
Energy
1050 Wh
Rated Output
52.50V / 140A
Max Charging Current
120A
Environmental Specifications
Operating Temperature
10°C to 45°C
Charging Temperature
10°C to 40°C
Storage Temperature
10°C to 30°C
IP Rating [11]
IP65
Compatibility
Compatible Aircraft
XAG® P150 Max Agricultural Drone
Compatible Chargers
XAG® CM13600S Battery Charger
XAG® CM15300D Battery Charger
XAG® CM210600 Battery Charger

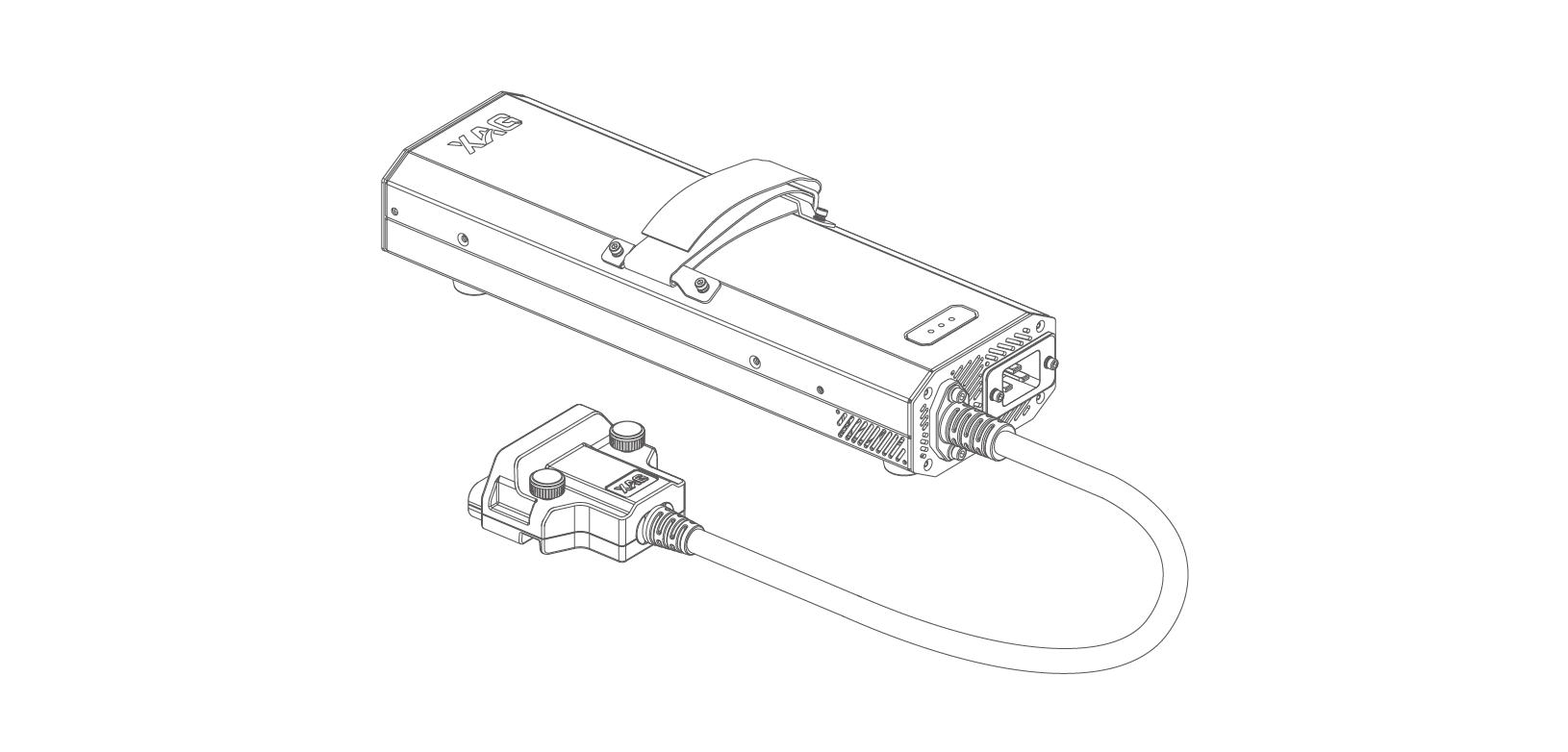

Battery Charger
Model
M2CM13600CH
Compatible Battery
XAG B141050 Supercharge Battery
XAG B13970S Supercharge Battery
Dimensions
346.00mm x 109.00mm x 73.00mm
Weight
Approx 3.9 Kg
Operating Temperature
-20°C to 40°C
Cooling Mode
Forced Air cooling
Input Voltage
AC 100-120 Vac 50/60 Hz 15.0A
AC 220-240 Vac 50/60 Hz 16.0A
Output Voltage
59.92 Vdc⎓21A
59.92 Vdc⎓55A
Output Power
35A (Max)/1300 W (100-120 Vac 50/60 Hz)
80A (Max)/3400 W (220-240 Vac 50/60 Hz)
Compatible Batteries
XAG® B141050 Supercharge Battery
XAG® B13970S Supercharge Battery
XAG® B13960S Supercharge Battery
