P150 Max vs P150: Which Agricultural Drone Is Right for Your Operation?
Choosing the right agricultural drone is not only about selecting the highest specification model. It is about finding the right balance between performance, workload, budget, and the type of jobs you need to complete on farm.
Both the XAG P150 Max and XAG P150 are high-performance agricultural drones designed for precision farming applications, including spraying, spreading and mapping. The P150 Max is the newer, higher-capacity model with upgraded output, payload, mapping and logistics capability, while the P150 remains a proven and cost-effective choice for growers and contractors looking for reliable performance at a more accessible price point.
This comparison breaks down the key differences between the P150 Max and P150, and explains which agricultural drone may be better suited to your operation.

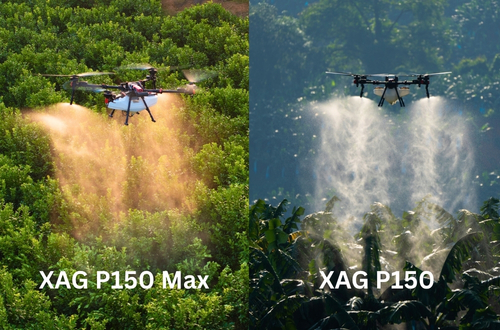

Quick Overview: P150 Max vs P150
The P150 Max is designed for operators who need maximum capacity, higher output, and greater versatility across spraying, spreading, field mapping, and logistics. It is a strong fit for larger properties, commercial contractors, and operations that require faster turnaround across multiple tasks.
The P150, on the other hand, is a reliable, high-performance agricultural drone that still delivers strong spraying and spreading capability. It is especially suitable for farmers, smaller contractors, and businesses looking for a more affordable way to enter professional agricultural drone operations without compromising on essential performance.
In simple terms:
- Choose the P150 Max if you want higher capacity, faster output, heavier payload, built-in mapping, and future-ready versatility.
- Choose the P150 if you want a proven, dependable, and cost-effective agricultural drone for everyday spraying and spreading work.
Key Specification Comparison
1. Payload and Tank Capacity
One of the biggest upgrades in the P150 Max is its increased payload and liquid tank capacity. The P150 Max can carry up to 80 kg and features an 80 L smart liquid tank, while the P150 carries up to 70 kg with a 70 L liquid tank.
It’s worth noting that, in real-world conditions, whether operators run a full tank on every pass will depend on the application rate, terrain, crop type, and how the job is set up.
For contractors and large-scale operations, fewer refill stops can help improve daily productivity and reduce downtime. For smaller farms or operators with more moderate workloads, the P150 still delivers strong capacity and practical efficiency.

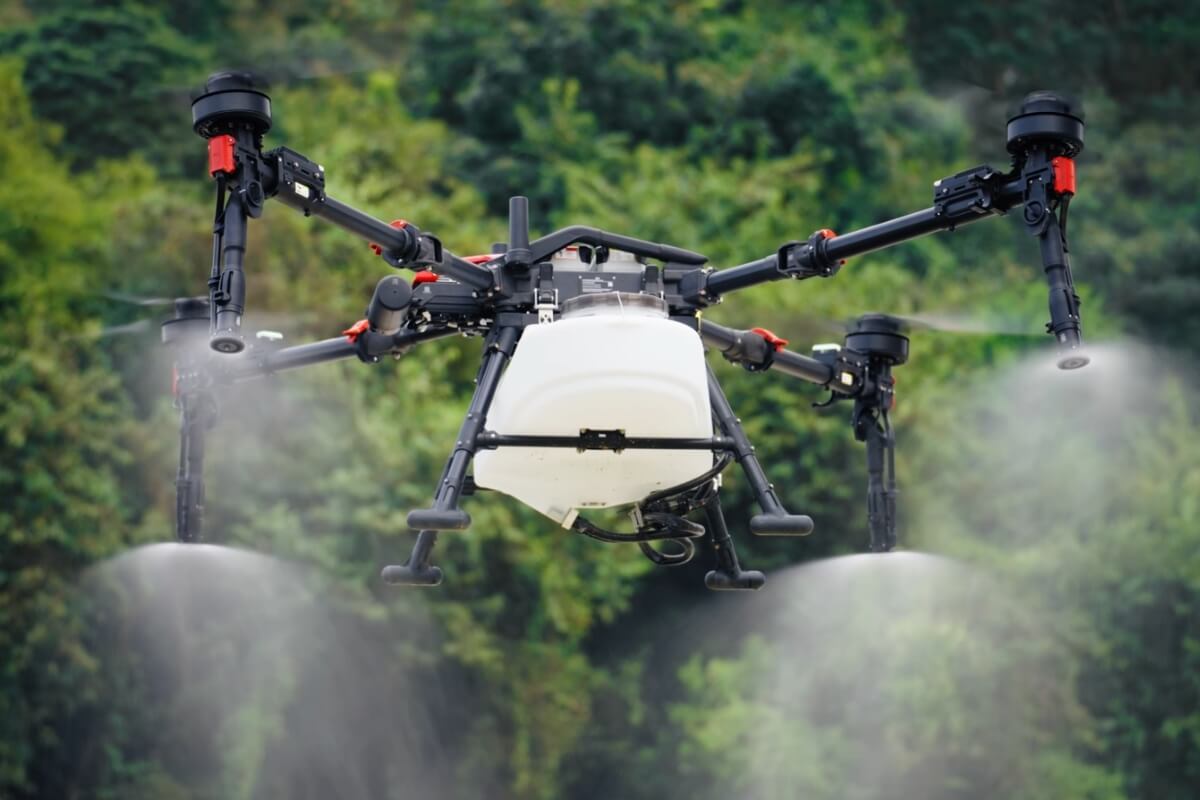

2. Spraying Performance
Both models are built for precision agricultural spraying, but the P150 Max offers higher output potential.
The P150 Max features an 80 L tank and can reach up to 46 L/min with the Four-Nozzle Kit, making it suitable for high-volume spraying tasks, dense canopy coverage, and situations where stronger droplet penetration is required. Its high-velocity downdraft helps drive droplets into the target area for more consistent coverage.
The P150 offers a 30 L/min maximum flow rate and remains a highly capable agricultural spray drone for broadacre, pasture, orchard, and general crop protection work. It delivers strong, practical spraying performance while keeping the overall investment more affordable.

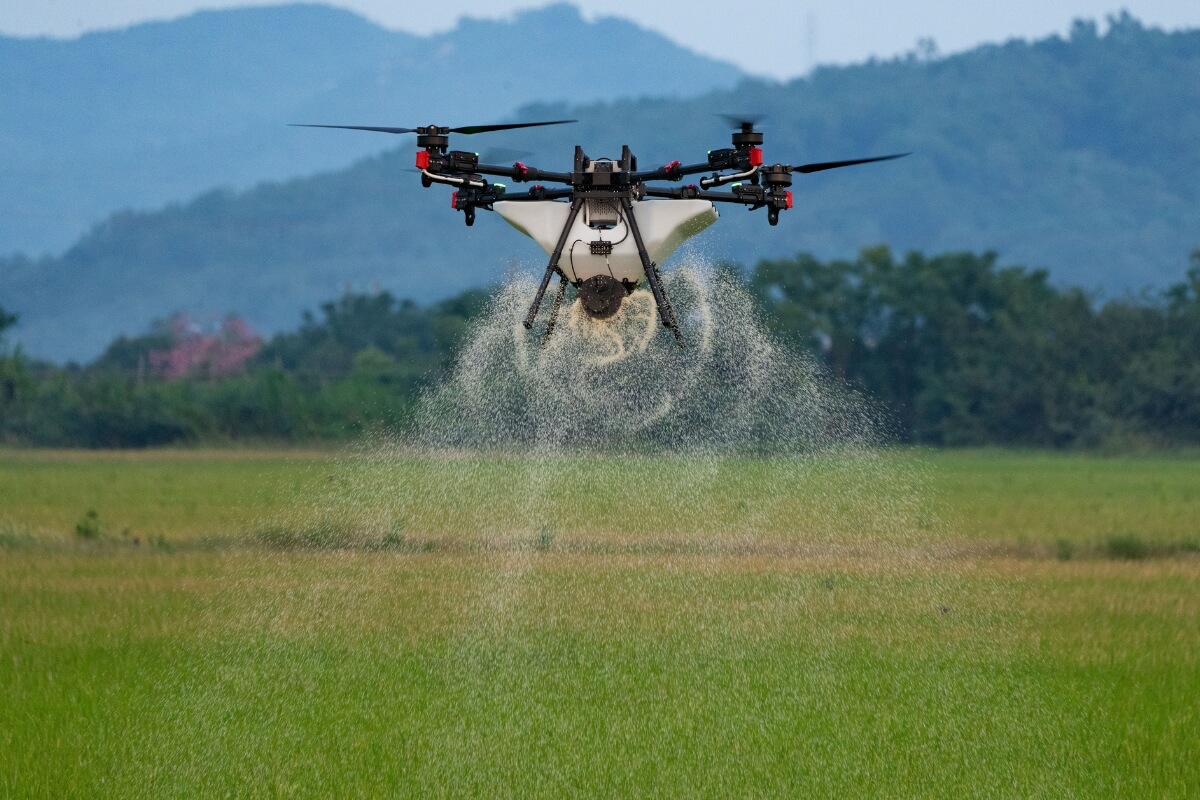

3. Spreading Performance
For spreading tasks, both agricultural drones are highly capable and use a 115 L granule container.
The P150 Max has a maximum spread rate of 300 kg/min and an effective spread width of 5–9 m, giving it a slight advantage in spreading output and coverage. This makes it well suited for fertiliser, seed, and other granular applications where fast, consistent spreading is important.
The P150 offers a maximum spread rate of 280 kg/min and a spread width of 3–8 m, which is still a strong level of performance for many farming operations. It is a practical and reliable option for growers who need efficient spreading without stepping up to the highest-capacity model.

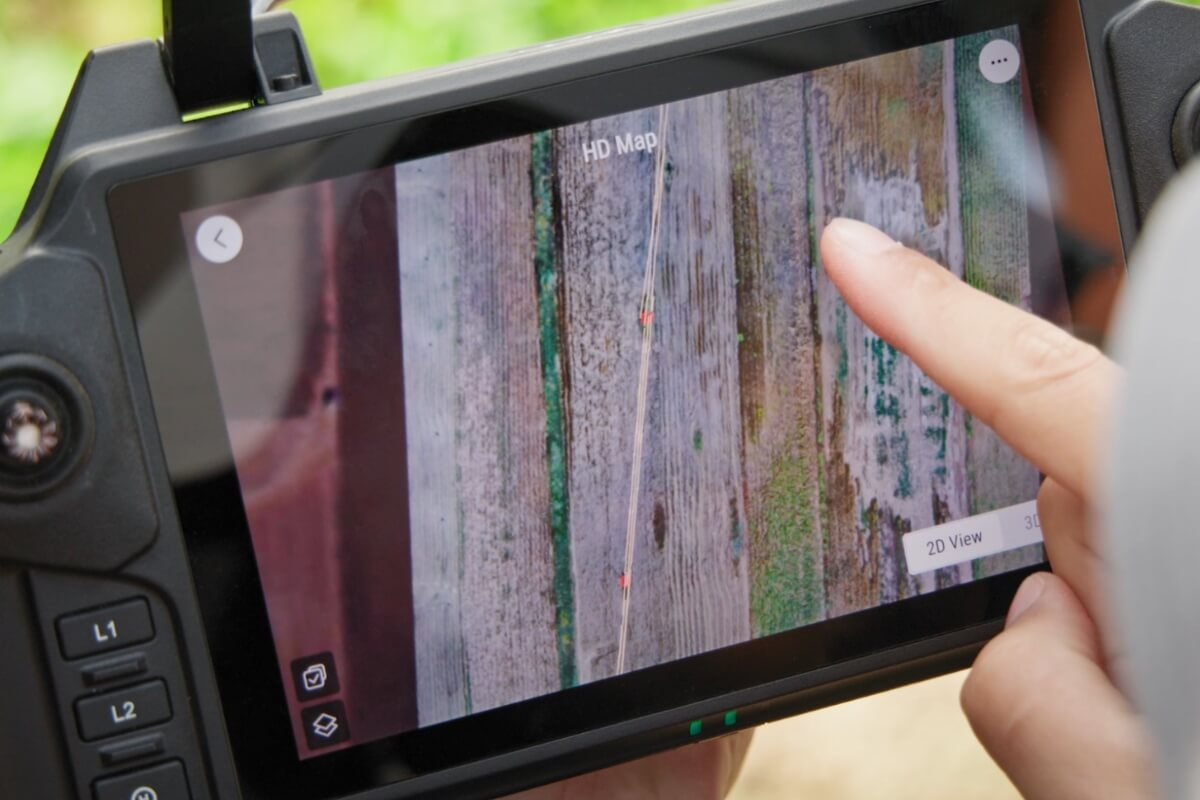

4. Field Mapping and Autonomous Flight
This is one of the clearer differences between the two models, so it's worth being specific.
The P150 Max has field mapping built in as standard, with no extra payload required. It can survey up to 20 ha in a single flight and turn that straight into an actionable 3D flight plan, with no pre-loaded maps needed to operate autonomously over rough or unfamiliar terrain.
The P150 supports the same map-free, autonomous 3D flight for spraying and spreading, but field mapping itself is delivered through the optional RealTerra payload rather than built into the base aircraft. This means P150 owners get the same high-quality mapping capability when they need it, just as an add-on rather than a standard inclusion.
5. Control, Power, and Multi-Drone Operation
Beyond the task systems, there are a few platform-level differences worth knowing about.

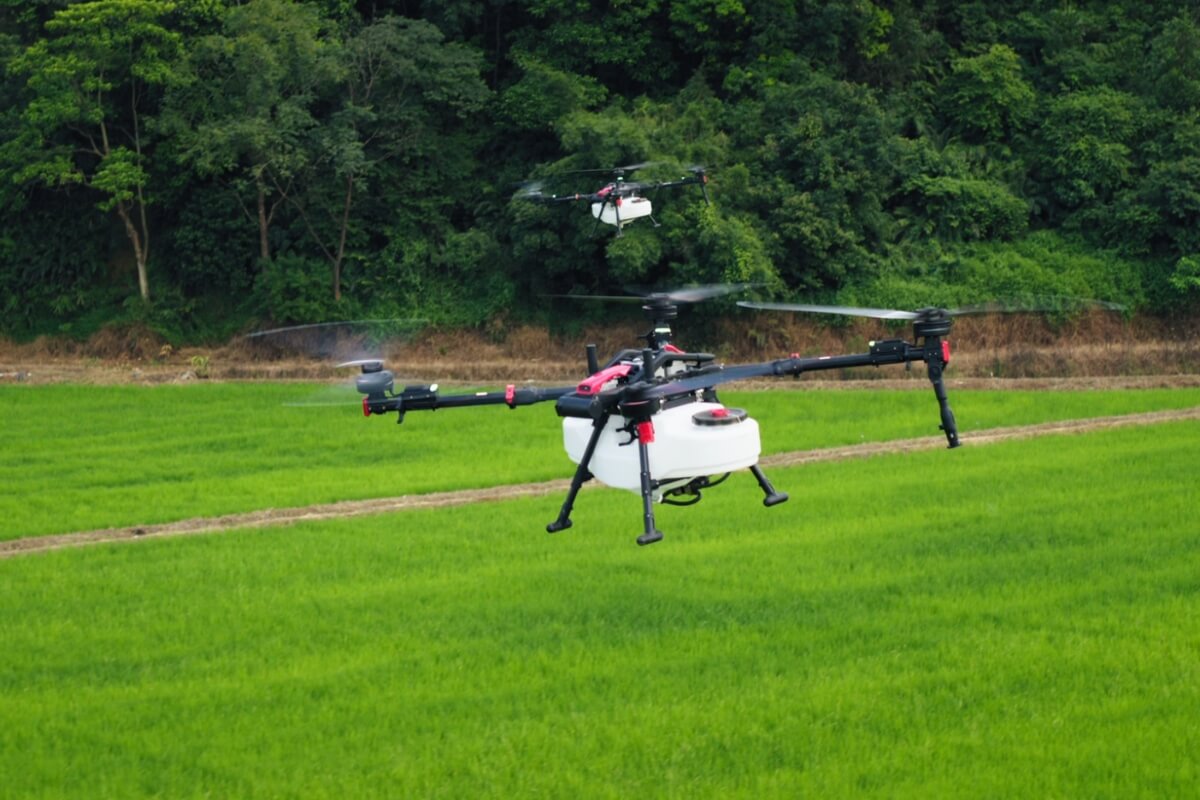

The P150 Max uses the newer SRC5 controller and the higher-capacity B141050 battery (1050 Wh), and it supports swarm operation, allowing one controller to autonomously manage two aircraft at once. For contractors covering large hectares, this can meaningfully cut total mission time.
The P150 runs the SRC4 controller — a 6-inch 2K display with a 5-hour battery life of its own — paired with the B13970S battery (975 Wh). It doesn't support swarm operation, so each aircraft needs its own controller and operator.

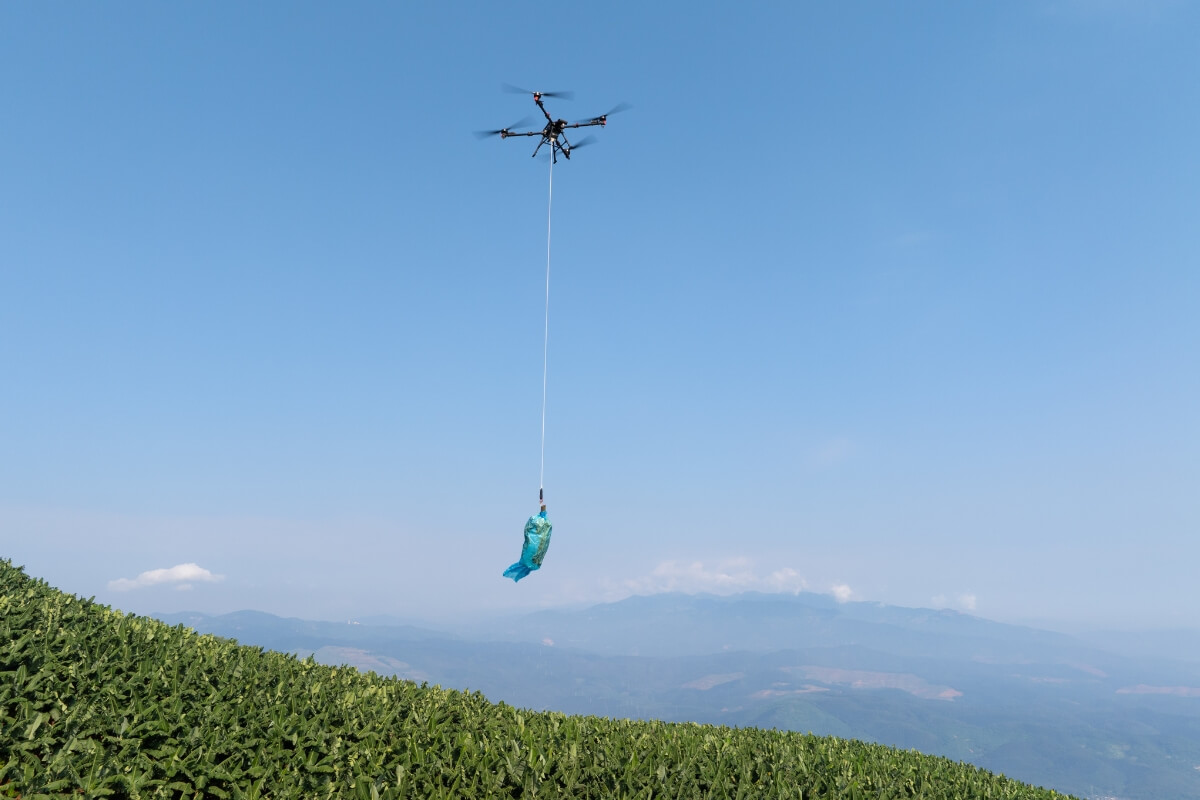

6. Logistics and Versatility
A major advantage of the P150 Max is its expanded versatility beyond crop application.
In addition to spraying, spreading, and mapping, the P150 Max can be equipped with the RevoSling module for agricultural logistics, allowing it to carry up to 80 kg across paddocks, hills, orchards, and difficult terrain. This makes the P150 Max useful for moving farm inputs, produce, seedlings, or equipment in areas where vehicles may be slow, unsafe, or impractical.
The P150 remains focused on core agricultural drone applications: spraying, spreading, mapping (via RealTerra), and precision farming. For many operators, this is exactly what they need. It keeps the system practical, efficient, and cost-effective.
7. Which Model Offers Better Value?
The answer depends on your operation.
The P150 Max offers stronger specifications, larger capacity, higher output, built-in mapping, and greater versatility. For commercial contractors or growers who need to cover more hectares, reduce refill time, and take on a wider range of agricultural drone work, the P150 Max can provide a strong return on investment.
The P150 offers excellent value as a proven, high-performance agricultural drone. It may not have every upgrade of the P150 Max, but it still provides serious spraying and spreading capability, strong payload capacity, autonomous flight, optional mapping, and reliable field performance. For operators who are price-conscious or entering the agricultural drone market for the first time, the P150 is a practical and competitive choice.
Which Agricultural Drone Should You Choose?
Choose the XAG P150 Max if you:
- Need the highest available capacity in the XAG P150 series
- Want an 80 kg payload and 80 L liquid tank
- Need higher spray output for demanding applications
- Want stronger spreading performance
- Want field mapping built in with no extra payload required
- Need agricultural logistics capability with RevoSling
- Want to run swarm operation across two aircraft
- Regularly work across large areas or difficult terrain
Choose the XAG P150 if you:
- Want a more affordable entry point into commercial agricultural drone operations
- Need reliable spraying and spreading performance
- Prefer a proven model with strong real-world field results
- Mainly focus on crop spraying, fertiliser spreading, and mapping (with RealTerra added as needed)
- Want a high-performance ag drone without moving to the highest-capacity option
- Are building a drone service business and want a practical first platform
Final Recommendation
The P150 Max is the best choice for operators who want maximum productivity, larger capacity, advanced automation, built-in mapping, and multi-purpose capability across spraying, spreading, mapping, and logistics.
The P150 remains a reliable, high-performance, and cost-effective agricultural drone for farmers and contractors who want strong spraying and spreading capability at a more accessible price point.
For Australian growers and agricultural contractors, both models offer a practical way to improve efficiency, reduce labour demand, access difficult areas, and complete precision farming tasks with greater accuracy.
To take a closer look at both models, you can explore the P150 Max and P150 here. If you'd like to book a free demo or chat about which agricultural drone is right for your operation, reach out to the XAG Australia team.
